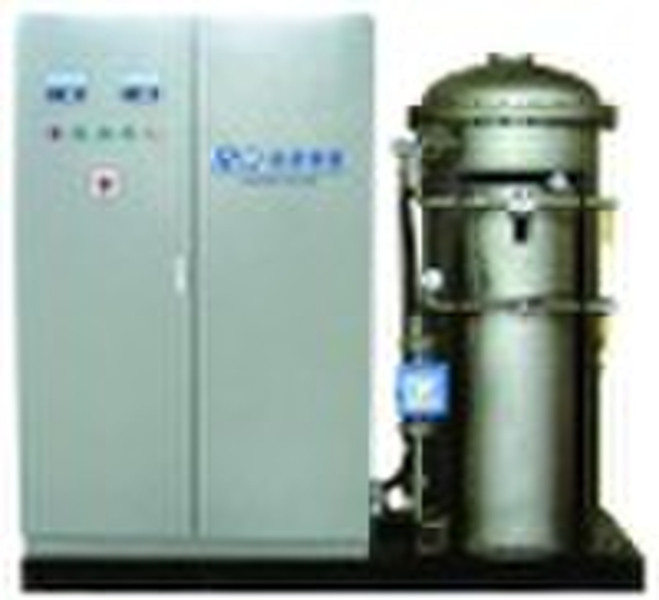

RQ-1000g/h ozone generator

Air source Ozone Generator Technical Date-----AirSource Model Output(g/h) Power(kw) Air input (m3/h) Water flow Rate(l/h) Overall dimensions(mm) Weight(kg) RQ-100G 100 0.9 1.25 195 610/500/1200 150 RQ-200G 200 1.8 2.50 390 660/600/1400 240 RQ-300G 300 2.7 3.75 585 1200/650/1600 320 RQ-400G 400 3.6 5.00 780 1300/650/1700 440 RQ-500G 500 4.5 6.25 975 1300/650/1700 510 RQ-600G 600 5.4 7.50 1170 1500/650/1700 580 RQ-700G 700 6.3 8.75 1365 1500/650/1700 650 RQ-800G 800 7.2 10.00 1560 1600/650/1700 720 RQ-900G 900 8.1 11.25 1755 1600/650/1700 790 RQ-1000G 1000 9 12.50 1950 1600/650/1700 860 RQ-2000G 2000 18 25.00 3900 2000/650/1800 1200 RQ-3000G 3000 27 37.05 5850 2700/650/1800 1600 RQ-4000G 4000 36 50.00 7800 2500/2100/1800 1900 RQ-5000G 5000 45 62.50 9750 3000/2100/1800 2200 RQ-6000G 6000 54 75 11700 3600/2100/1800 2500 RQ-7000G 7000 63 87.50 13650 3600/2100/1800 2900 RQ-8000G 8000 72 100.00 15600 4000/2200/1800 3300 RQ-9000G 9000 81 112.50 17550 4500/2200/1800 3800 RQ-10000G 10000 90 125.00 19500 4700/2200/1800 4200 Ozone power Standard HV power shall be used for Ruiqing series of ozone power with proprietary intellectual property rights to guarantee high efficiency ,light weight, beautiful appearance and reasonable circuits and structures under high-frequency and high voltage states.They shall be assembled by imported integrated circuits and high-quality elements with the international novel IGBT tubes with negative temperature coefficient. There are automatic trouble detection functions ,automatic and manual adjustment in and out of power and users can adjust power within a certain scope according to different demands.Power of internal automatic adjustment circuit can be maintained automatically .that is ,output power of circuits can be maintained automatically.That is,output power of circuits can be basically maintained constant when ambient environment (such as voltage)varies.Circuits can detect load troubles and stop operation automatically with acoustic alarm so trouble rate of performance stability is very low.Power frequency can be adjusted slightly according to load discreteness.There is excellent power supply for ex-factory frequency and load of series of machines.That is ,heating of power tubes will be reduced greatly with obviously increased ozone productivity under resonance status.Ozone discharger By introducing Japanese Fuji Electuic Joint-stock techniques . 1 .High-precision Q316 stainless steel tubes have been adopted for HV electrodes and dielectric medium can be cooled by external electrode through water. 2.Lead quartz imported from Japan is a discharging medium to enhance impurity (dust or water)ability in HV discharging zone and prolong service life by overcoming repair problems of enamel medium and electrodes.Electric medium can be protected by external stainless steel tubes to prolong service life and bear physical impact during installation,maintenance and repair. Performance characteristics To introduce Japanese Fuji Electric motor techniques with reliable and stable operation;IGBT high-frequency and high-voltage power with matched frequency and load and high ozone output;Lead quartz imported from Japan shall be used as discharging medium with unexampled low thermal expansion coefficient,strong temperature resistance and high chemical stability .At present,the technique has been used by Swiss OZONIA,Germanic WEDECO and Japanese FUJI;It is required to adopt 316L stainless steel discharging techniques with high concentration with high precision and micro-gap.
